Description

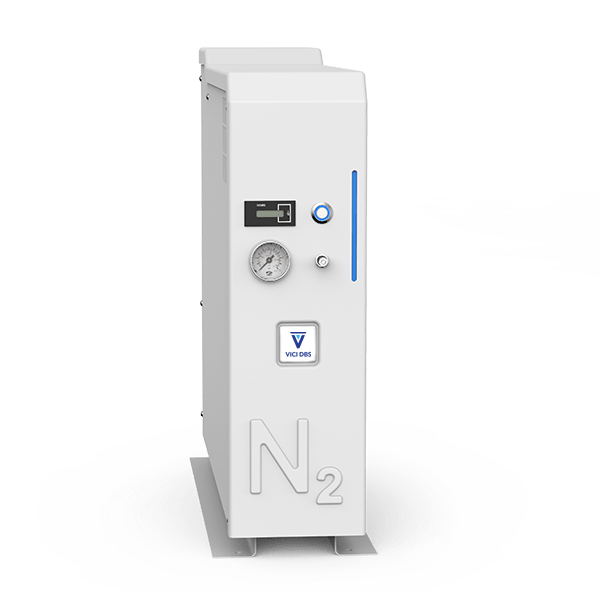

The new HP Zero 750 HC Tower Nitrogen Generator produces nitrogen by utilizing a combination of filtration and pressure swing adsorption (PSA) technology. Standard compressed air is filtered by high-efficiency coalescing filters to remove all contaminants down to 5µm. For ultra-sensitive applications such as GC carrier and make-up gas, units also include the additional heated catalyst module to ensure hydrocarbons are removed to <0.1 ppm. The air then passes through two columns filled with a proprietary blended carbon molecular sieve (CMS) which adsorbs O2, CO2, and moisture. These are desorbed to the atmosphere during the pressure swing cycle leaving a supply of ultra-pure nitrogen.
The guaranteed flow rate of pure nitrogen is 750 mL/min.
HP ZERO 750 HC TOWER FEATURES:
▪︎ Flow rate 750 mL/min
▪︎ Purity >99.999%
▪︎ Pressure up to 5 barg (75 psig)
▪︎ Space-saving design
▪︎ Proprietary carbon molecular sieve
▪︎ Ideal for GC carrier gas including ECD, make-up gas, TOC, DSC, and ELSD applications
▪︎ 2-year standard warranty
Part# DB-N2T-750-O-EU (220V/50Hz)
Part# DB-N2T-750-O-US (115V/60 Hz)
