Description

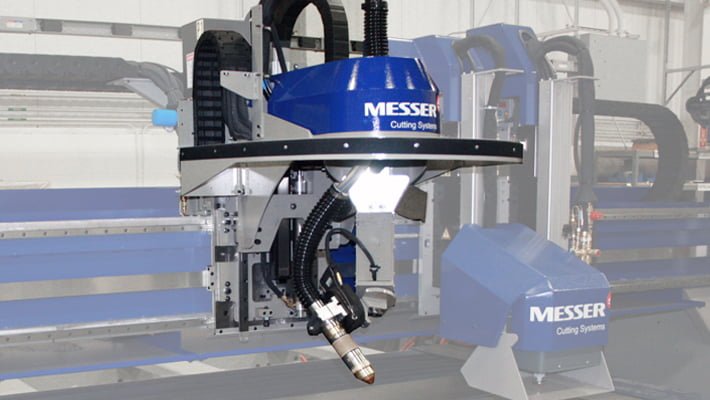

The Global Rotator Deltae features a robust compact design, drives, coupled with our OmniBevel software, creates the best cut parts available on the market.
The compound skew design utilized in the Global Rotator Deltae keeps the critical components up and away from the cutting torch, minimizing the risk of damage to the torch by slag, heat, and collision.
Capable of cutting accurate bevel profiles on any angle from +45° to -45°, the Global Rotator Deltae automatically controlled by the Global Control Plus. Rotation of +/- 460° takes place at a rate of up to 50 RPM, for efficient use of the machine torch on-time. Torch height is controlled automatically with analog arc voltage to an accuracy of +/- .006″ (+/-0,15mm), so part accuracy is maintained throughout the cut. Corner loop size down to 0.394″ (10 mm) can be achieved without requiring start/stop commands. The result is accurate parts with square corners and a minimum of scrap. The Global Rotator Deltae can be used on select machines.
- C Axis Rotation of +/- 460° takes place at a rate of up to 50 RPM, for efficient use of the machine torch on-time.
- Capable of cutting accurate bevel profiles on any angle from +45° to -45°.
- Torch height is controlled automatically with analog arc voltage to an accuracy of +/- .006″ (+/- 0,15 mm), so part accuracy is maintained throughout the cut.
- Corner loop size down to 0.394″ (10 mm) can be achieved without requiring start/stop commands.
- Bevel cutting up to 800 amps.
- Compact for maximum performance.
- Types of bevels K, V, X, Y, I.
