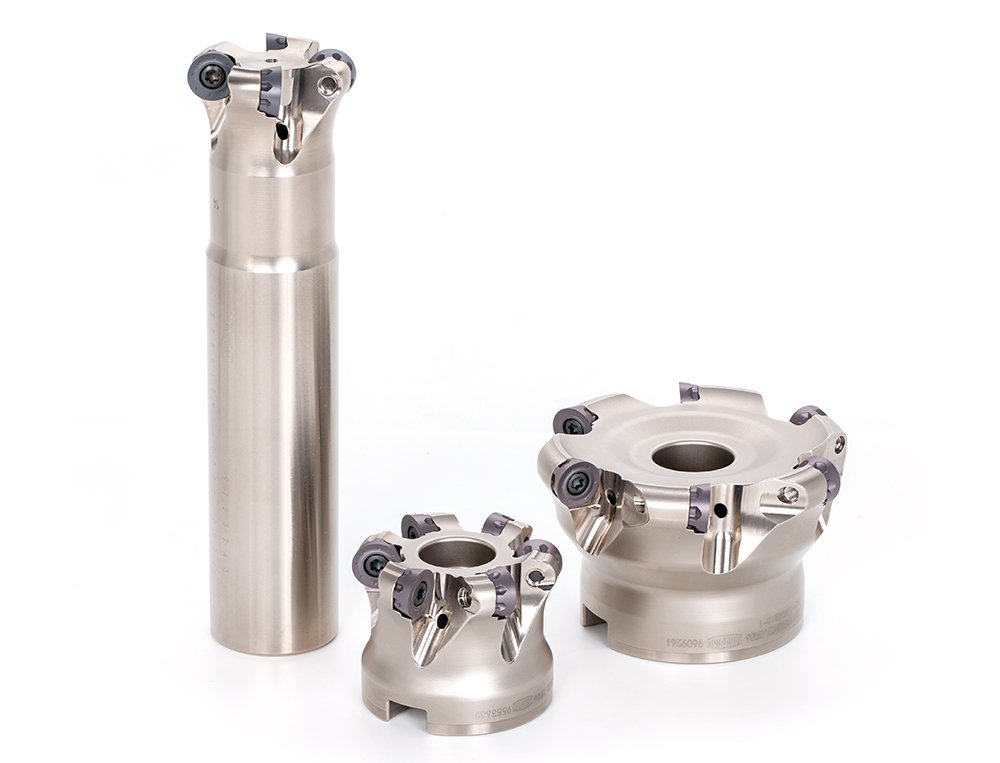

FixRMill (new design)
Upgraded FixRMill round insert copy mill with unique anti-rotation system
Radius cutter for profile milling of complex parts, Pastille de FRISAGE au Maroc /plaquette de FRISAGE Maroc, Usinage de gorges et Tronçonnage
Applications
Shoulder milling R
Face milling
Slotting R
Pocketing
Ramping
Profiling
Plunging
Hole enlarging
Features

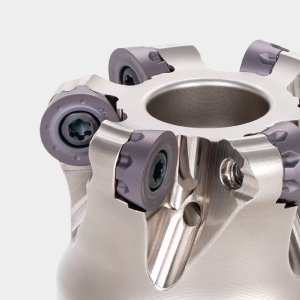

1. Accurate and secure clamping
- The anti-rotation system securely keeps the inserts locked in place and prevents them from moving in the pockets during machining, ensuring tool reliability and accurate indexing over various applications.
- High productive cutter with close pitch design
Inserts per diameter density comparisons: FixRMill vs conventional round insert cutter
| Tool diameter DCX (mm) |  Close pitched | Conventional round insert cutter |
| ø50 | 6 | 5 |
| ø63 | 7 | 6 |
2. Two types of inserts
- Both inserts can be clamped in the same pocket
- Inserts can be selected based on the required depth of cut for best cost per edge
RQMT1204ENC8-MM
Allows up to 8 indexes for 1.4 mm or smaller D.O.C. and up to 4 indexes for up to 6 mm D.O.C.
RQMT1204ENC6-MM
Allows up to 6 indexes for 2.6 mm or smaller D.O.C. and up to 3 indexes for up to 6 mm D.O.C.
