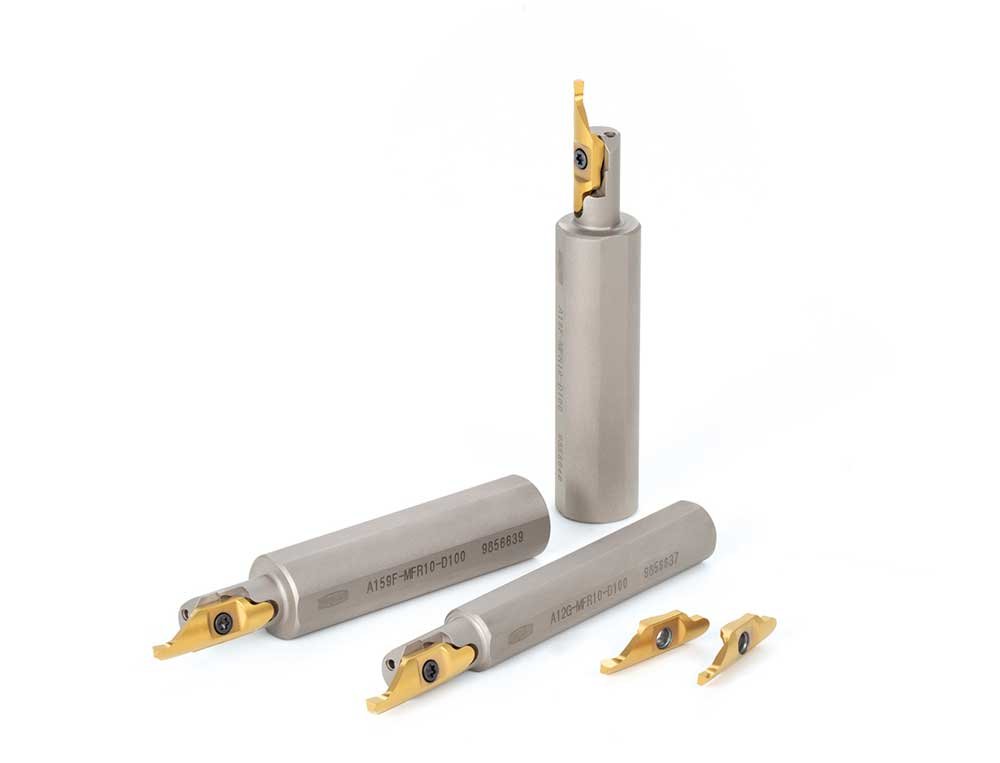

FaceMiniCut
Extremely rigid insert clamping and superior chip evacuation
New ultimate deep face grooving tool
Applications
Face grooving
Features
Deep face grooving of up to 10 mm DAXN and up to 9 mm groove depth is possible
- Effectively removes chips out of the cutting area and eliminates bird nesting
- Extremely rigid insert clamping ensures tool stability during deep face grooving operations
- Sharp cutting edge, combined with SH7025, the latest PVD grade, provides long tool life and superior surface quality
Superior chip evacuation
High clamping rigidity
SH7025 – the latest PVD insert grade for superior surface quality and process security
- The latest grade with sharp cutting edge designed for small part machining.
- A combination of a columnar-structured TiCN coating and multilayered TiAlN coating provides superior surface quality and process security.
Superior process security
Chipping-resistant multi-layered TiAlN coating provides process security.
